Surge Capacitors
(Medium & High Voltage)

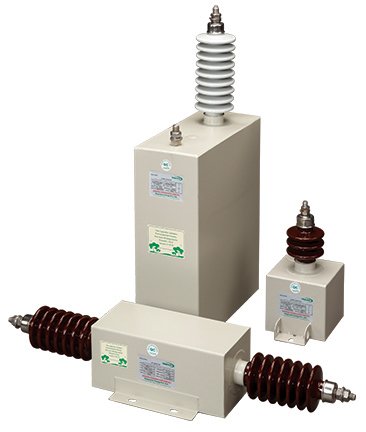

Medium and high voltage surge capacitors designed to protect electrical equipment from damaging voltage surges. Engineered to control surge waveforms, limit steep voltage rise, and ensure long-term reliability in high-stress power systems.

Request Quote Download Datasheet
● Manufactured in India ● Approved Vendor for Indian Railway ● Global Export Ready

CAPACITANCE RANGE

0.125 µF – 0.5 µF

VOLTAGE RATING

Up to 46 kV

FREQUENCY

50 / 60 Hz

PHASE

Single Phase

INSTALLATION

Indoor & Outdoor

Key Performance Features

Low Loss Design: Losses less than 0.8 W per kVAR
High Reliability: Optimized construction for long service life
Low Noise Operation: Stable electrical performance under surge conditions
Waveform Control: Reduces steepness of travelling voltage waves
Environment Friendly: Non-toxic impregnation and epoxy coating
Optimized Volume: Compact and highly reliable construction
MANUFACTURING EXCELLENCE

Built for Surge Protection Reliability

Advanced Dielectric Systemy

Manufactured using imported bi-axially oriented double side hazy polypropylene film as dielectric, combined with 99.9% pure aluminium foil as conductor.

Precision Winding & Folding

Elements are wound on modern automatic winding machines in a controlled Class 100 environment. Edge and foil folding reduce partial discharge inception voltage.

Vacuum Drying & Impregnation

Dry packs are wrapped in high-quality insulating paper, placed in pre-treated CRCA or stainless steel containers, vacuum dried, impregnated with non-toxic, non-PCB fluid, and epoxy coated.

Robust Mechanical Construction

Top lids welded using semi-automatic pulse TIG welding machines. Bushings of required BIL ensure leak-proof sealing and safe operation.

APPLICATIONS

Protection Against Electrical Surges

Surge capacitors are used in circuits where damaging voltage transients are expected and equipment protection is critical.

“Optimized for protection against lightning, switching, and transient voltage surges.”

Protection against lightning surges and switching surges

Surge capacitors safeguard equipment from sudden voltage spikes caused by lightning or switching events.

Limiting voltage rise in high voltage motors, transformers, and generators

Ensures voltage rise is controlled for safe operation of high-voltage equipment.

Surge protection during circuit breaker switching operations

Protects equipment from transients caused by circuit breaker operations.

Harmonic capacitor applications requiring surge suppression

Used in harmonic capacitor circuits where surge suppression is critical.

Power systems with frequent transient disturbances

Ensures reliable operation in systems with frequent voltage transients.

Technical Specifications

Detailed electrical and mechanical parameters

Electrical Parameters
  • Capacitance Range: 0.125 µF to 0.5 µF
  • Rated Voltage: Up to 46 kV
  • Frequency: 50 Hz / 60 Hz
  • Phase: Single Phase
Mechanical and Environmental
  • Enclosure: Pre-treated CRCA container or stainless steel container
  • Surface Finish: Dual coat epoxy painting
  • Installation: Suitable for indoor and outdoor applications
Standards and Compliance
  • IS 11548
Thermal Performance
  • Designed for stable operation under transient thermal stresses
  • Low losses ensure minimal heat generation
