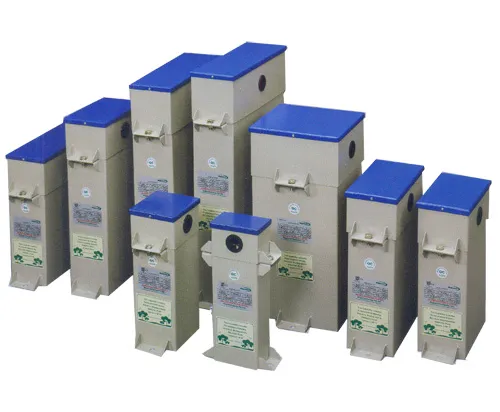

Low Voltage Film Foil
(APP) Capacitors
High-performance LT capacitors engineered for superior power factor correction, harmonic filtering, and operational efficiency in demanding industrial environments. Designed for longevity and stability under fluctuating loads.
KVAR RANGE
Up to 50 kVAR
VOLTAGE LEVELS
415V – 1000V
FREQUENCY
50 / 60 Hz
PHASE
1-Phase & 3-Phase
FUSE CONFIG
Internal & External
Key Performance Features
Engineered for Reliability
Premium Materials
Built using high-grade imported polypropylene film and 99.9% pure aluminum foil for superior dielectric strength.
Automated Winding
Computerized winding process ensures uniform tension and consistent capacitance values across batches.
Vacuum Impregnation
Treated with non-PCB bio-degradable fluid and epoxy coating for moisture resistance and extended life.
Rigorous Testing
100% in-house testing including loss angle measurement and high-voltage stress tests.
Versatile Industrial
Solutions
Our capacitors are designed to handle the diverse power quality challenges faced by modern industries, ensuring efficiency and compliance with grid codes.
Power Factor Correction
Essential for LV networks to reduce kVA demand and penalties.
APFC Systems
Ideal for automatic panels (Tuned & Detuned) ensuring grid stability.
Harmonic Filtering
Mitigates resonance in circuits with heavy non-linear loads.
Industrial Plants
Widely used in textile, sugar, paper, and steel industries.
Technical Specifications
Detailed electrical and mechanical parameters
- Rated Voltage: 415V – 1000V
- Frequency: 50/60 Hz
- Capacitance Range: 1 – 50 kVAR
- Dielectric Type: Polypropylene Film
- Loss Factor: ≤ 0.2 W/kVAR
- Temperature Class: −25°C to +55°C
- Enclosure: Aluminum / Steel
- Mounting: Floor / Panel
- Cooling: Natural Air
- Ingress Protection: IP20 / IP54
- Operating Altitude: ≤ 2000m
- Humidity: ≤ 95% RH
- IEC 60831
- IS 13585
- RoHS Compliant
- CE Marked
- ISO 9001 Manufacturing
- Internal Thermal Fuse
- Heat Dissipation Coating
- Self-Healing Film
- Over-pressure Disconnector
- Over-current Protection
- Short Circuit Rated
- Internal Fuse Option
- Pressure Sensitive Disconnect
- Terminal Type: Stud / Lug
- Mounting Hardware Included
- Horizontal / Vertical
- Busbar Compatible
